4X Micro magnifier with integrated side flip adaptor

4X Micro magnifier with integrated side flip adaptor
4X Micro magnifier with integrated side flip adaptor
4X Micro magnifier with integrated side flip adaptor
4X Micro magnifier with integrated side flip adaptor
4X Micro magnifier with integrated side flip adaptor

349.00 $



The Mepro MMX4 micro magnifier is compact, lightweight magnifier that will extend your effective range of your red dot or 1x reflex sight. Weighing in at 6.9 it reduces the footprint, saving rail space and weight on your firearm.

Elevation and windage dials provide precise FOV line of sight alignment.

A wide FOV enables rapid target acquisition with both eyes open which is ideal where agility, and speed are of the utmost importance.

The Mepro MMX4 micro magnifier attach to any MIL-STD-1913 rail directly behind your optic.
When not in use the Mepro MMX4 can be “flipped” out of the way by depressing a pushbutton.

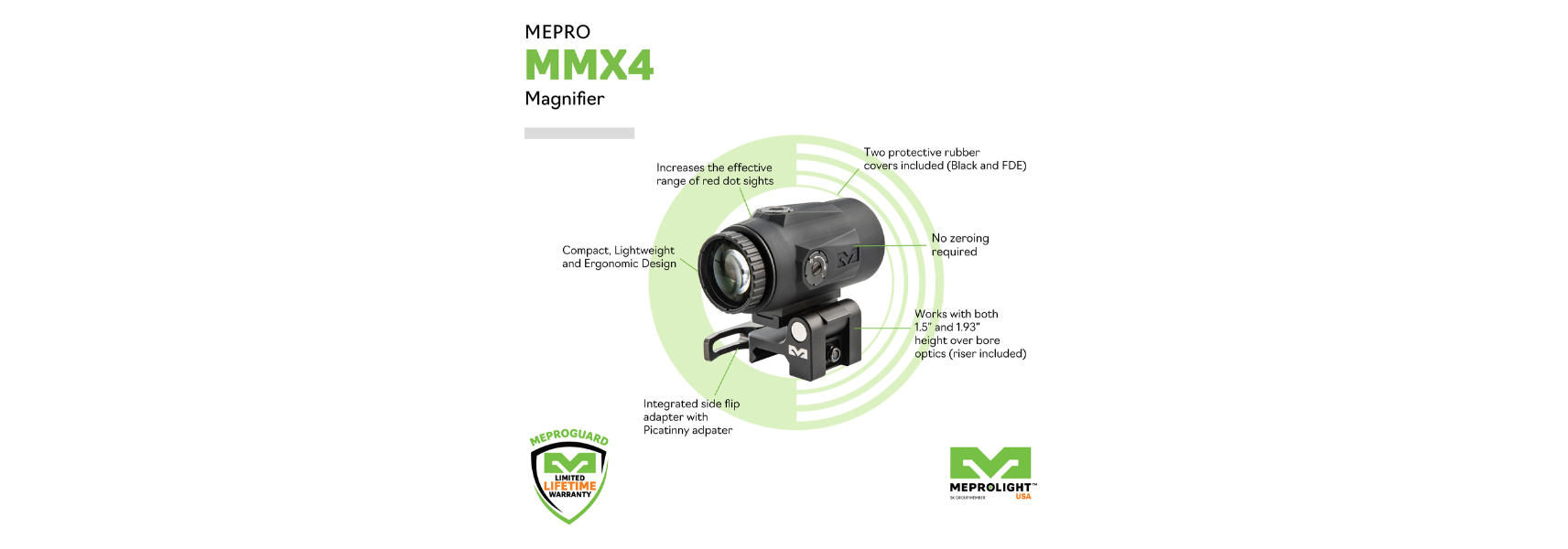

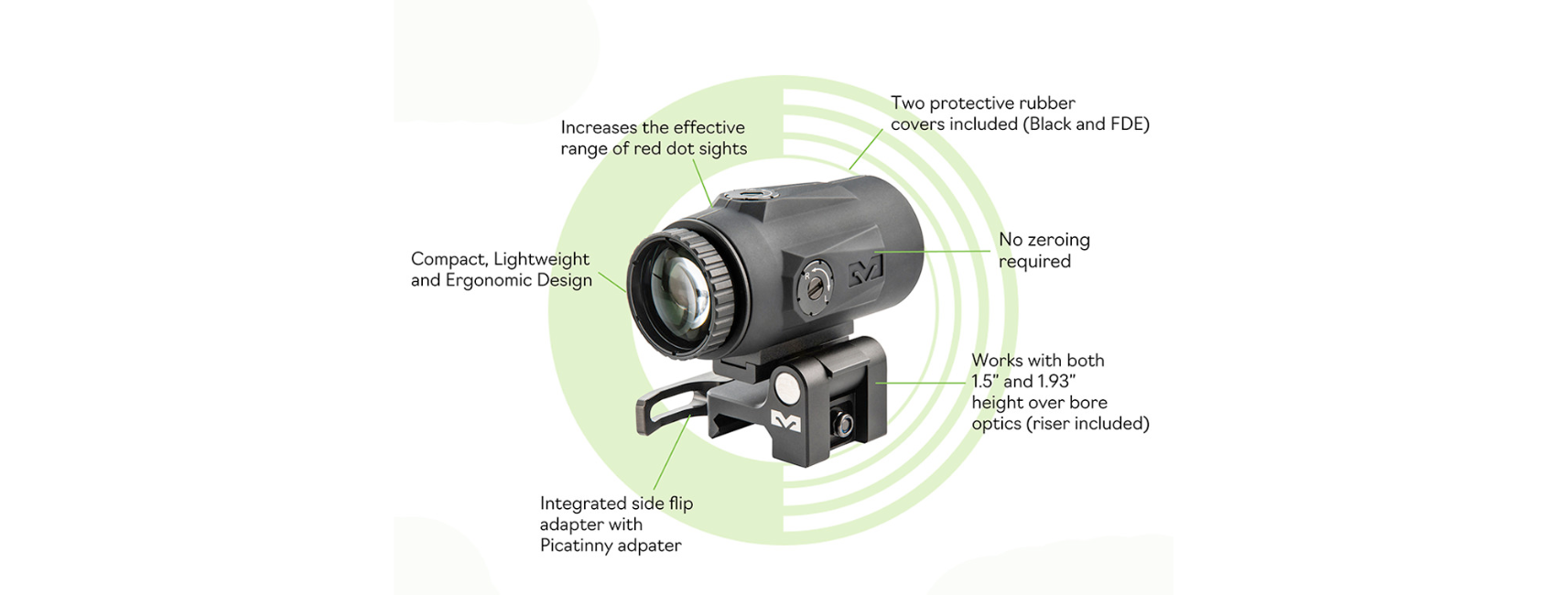

PROVEN ADVANTAGES

  • Increases the effective range of red dot sights
  • Enables rapid target identification
  • Works with both 1.5″ and 1.93″ height over bore optics (riser supplied)
  • No zeroing required

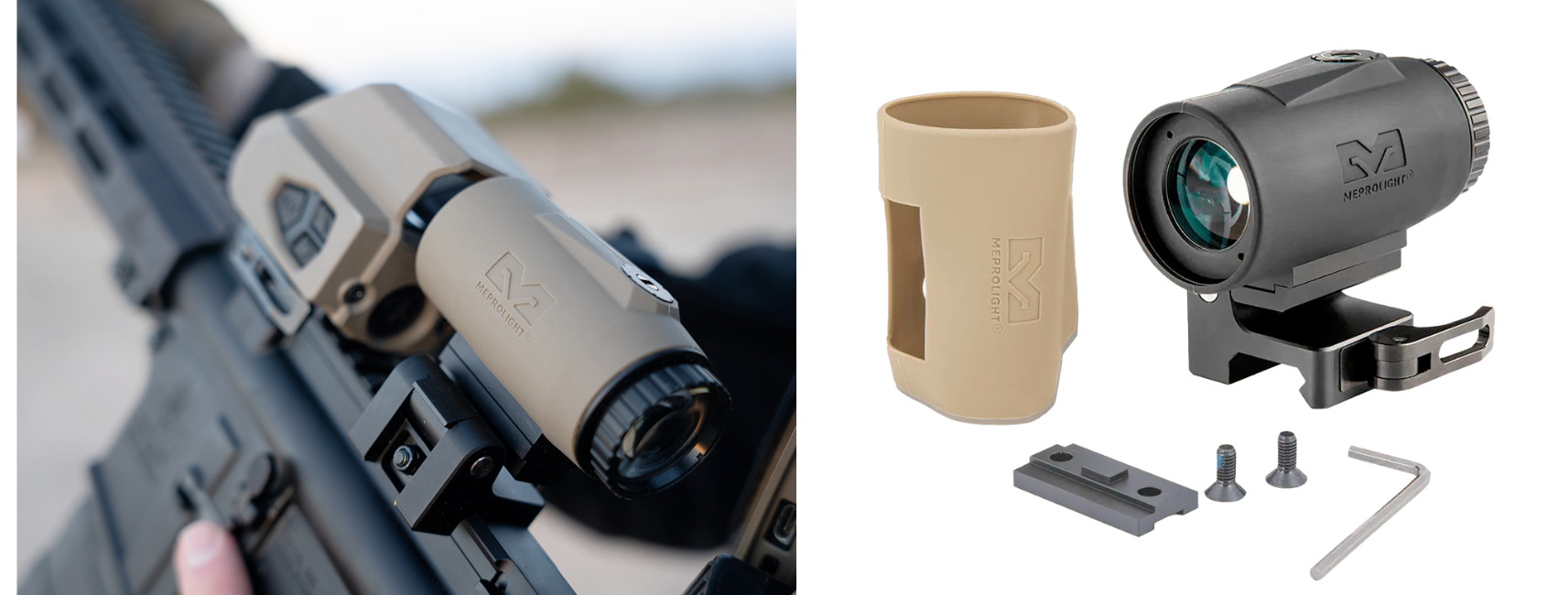

  • Two protective rubber covers included
  • Integrated side flip adapter with Picatinny adapter

TECH SPECS

  • Magnification: 4x
  • Objective diameter: 24 mm
  • Exit Pupil: 6 mm
  • Length: 3.2″ (82 mm)
  • Center Height: 1.4″ (36 mm)
  • Center Height with Riser: 1.74″ (44.4 mm )
  • Net Weight with mount: 10.01 oz (284 g)
  • Eye Relief: 2.89″ (73.4 mm )
  • Angular Field of View: 5.5°
  • Diopter adjustment: +/- 2
  • W&E Travel Range: ≥60 MOA
  • Storage Temperature: -22°F to 76°F (-30° to 25°)
  • Submersion: IPX7
  • Working Temperature: -4°F to 122°F (-20° to 50°)
