Product Description
ADVANCED CLOSED EMITTER OPTIC
MCO PRO

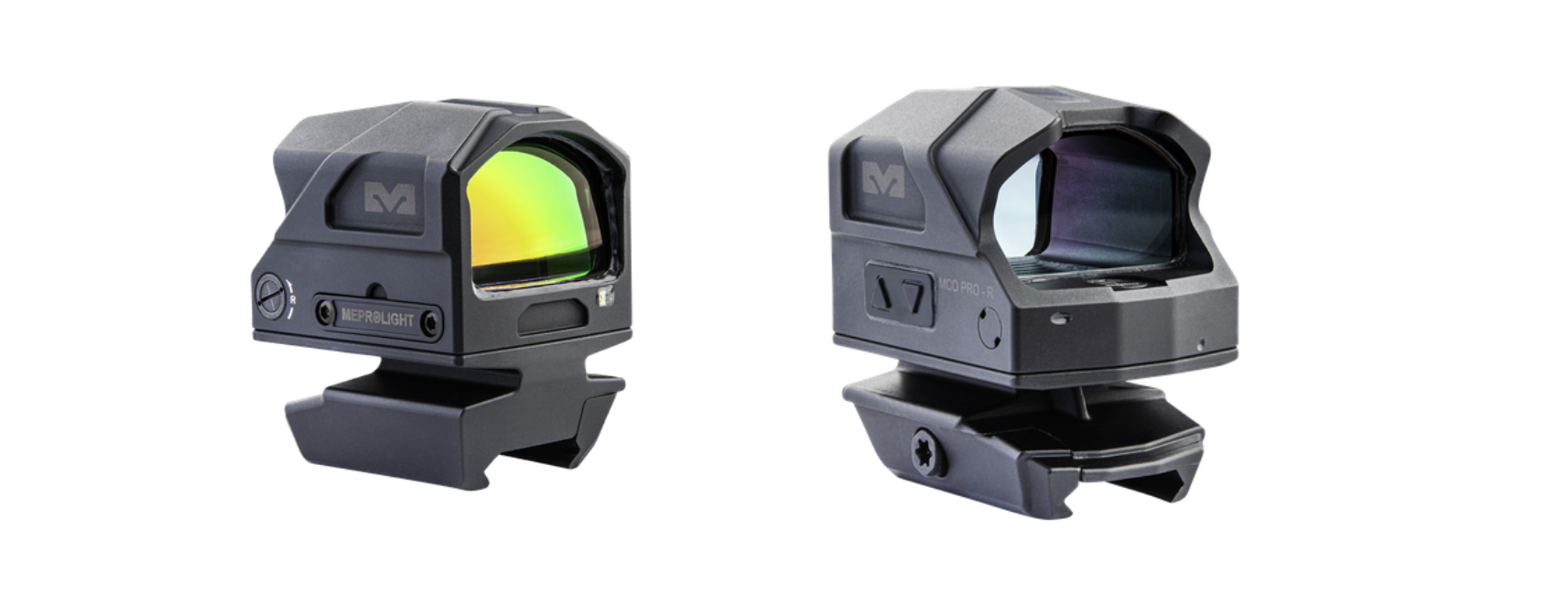

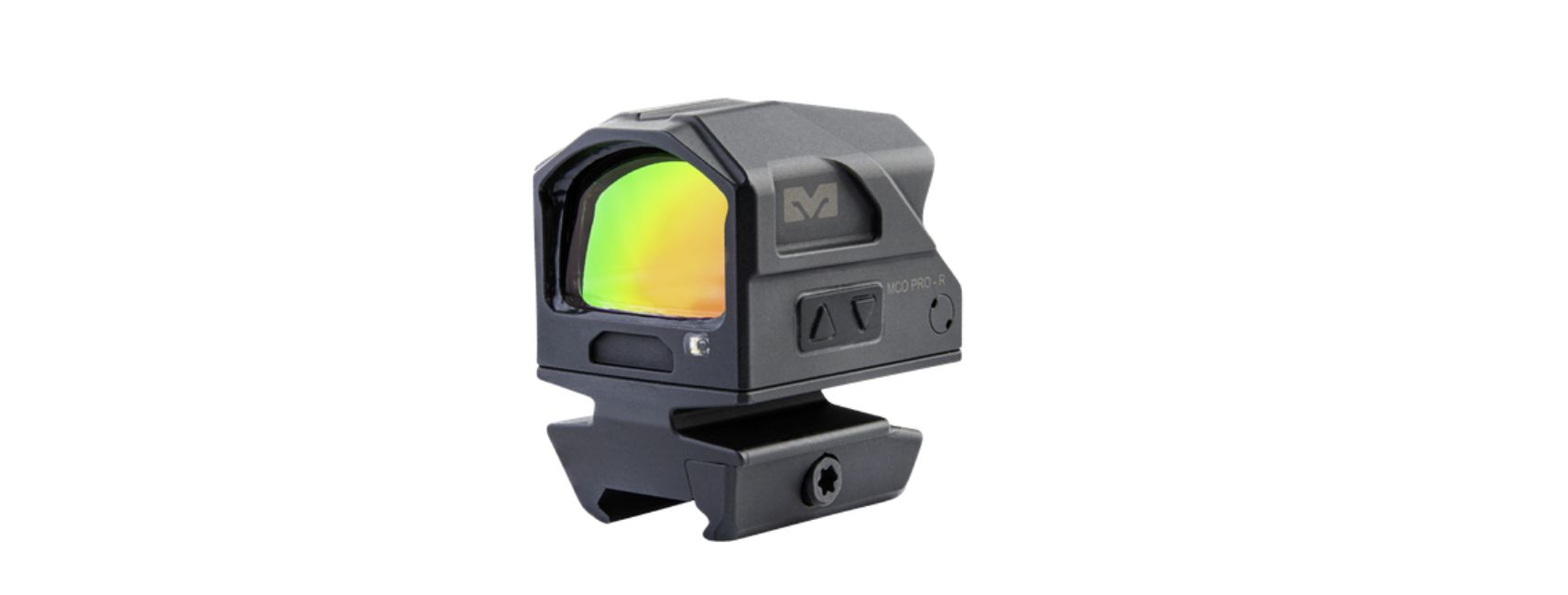

Closed Emitter Carbine Optic
A rugged, enclosed carbine optic featuring a versatile SpeedRing reticle, intelligent brightness management, Shake Awake activation, and dependable performance in demanding conditions.
PROVEN ADVANTAGES
CLOSED EMITTER DESIGN
Protected emitter construction designed to shield the optical system from the elements.
SELECTABLE SPEEDRING RETICLE
Three user-selectable reticle configurations.
12 BRIGHTNESS SETTINGS
10 daylight levels and 2 night vision settings.
25,000+ HOUR BATTERY LIFE
Powered by one CR2032 battery, rated at manual setting 5.
AUTO & MANUAL BRIGHTNESS
Choose between automatic illumination management and manual brightness control.
SHAKE AWAKE TECHNOLOGY
Motion-activated wake function following sleep mode.
INTEGRATED RECOIL BLOCK
Designed to support alignment and consistent zero retention.
IP67 PROTECTION
Water- and dust-resistant construction rated to IP67.
OPTIONAL 1.93″ RISER
Separately available riser for an elevated optic mounting position.
PRODUCT OVERVIEW
CLOSED EMITTER. RUGGED PROTECTION.
The Meprolight MCO PRO features a closed-emitter design that shields the emitter from environmental elements. Its durable 7075-T6 aluminum construction and IP67 water- and dust-protection rating make it suitable for demanding field conditions.

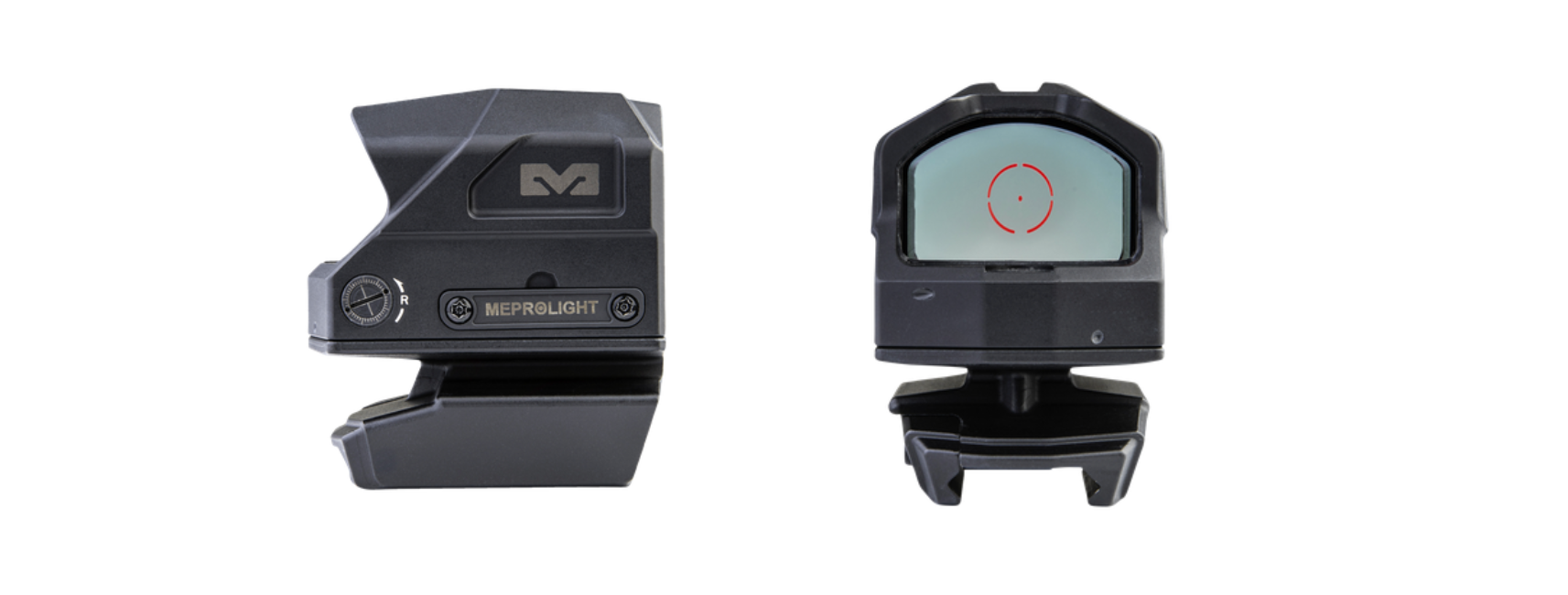

THREE SELECTABLE SPEEDRING CONFIGURATIONS
The user-selectable SpeedRing reticle system offers three configurations, with red or green reticle options:
2 MOA DOT
2/68 SPEEDRING
SPEEDRING WITH 1.5 MOA HOLDOVER DOTS
SMART BRIGHTNESS & BATTERY MANAGEMENT
The MCO PRO provides 10 daylight and 2 night vision brightness settings, with the flexibility of automatic or manual illumination control. Its Shake Awake system supports motion-activated operation following sleep mode.
Powered by a single CR2032 battery, the optic is rated for more than 25,000 hours at manual brightness setting 5 with the 2 MOA dot reticle. Actual battery performance depends on the reticle and brightness configuration selected.

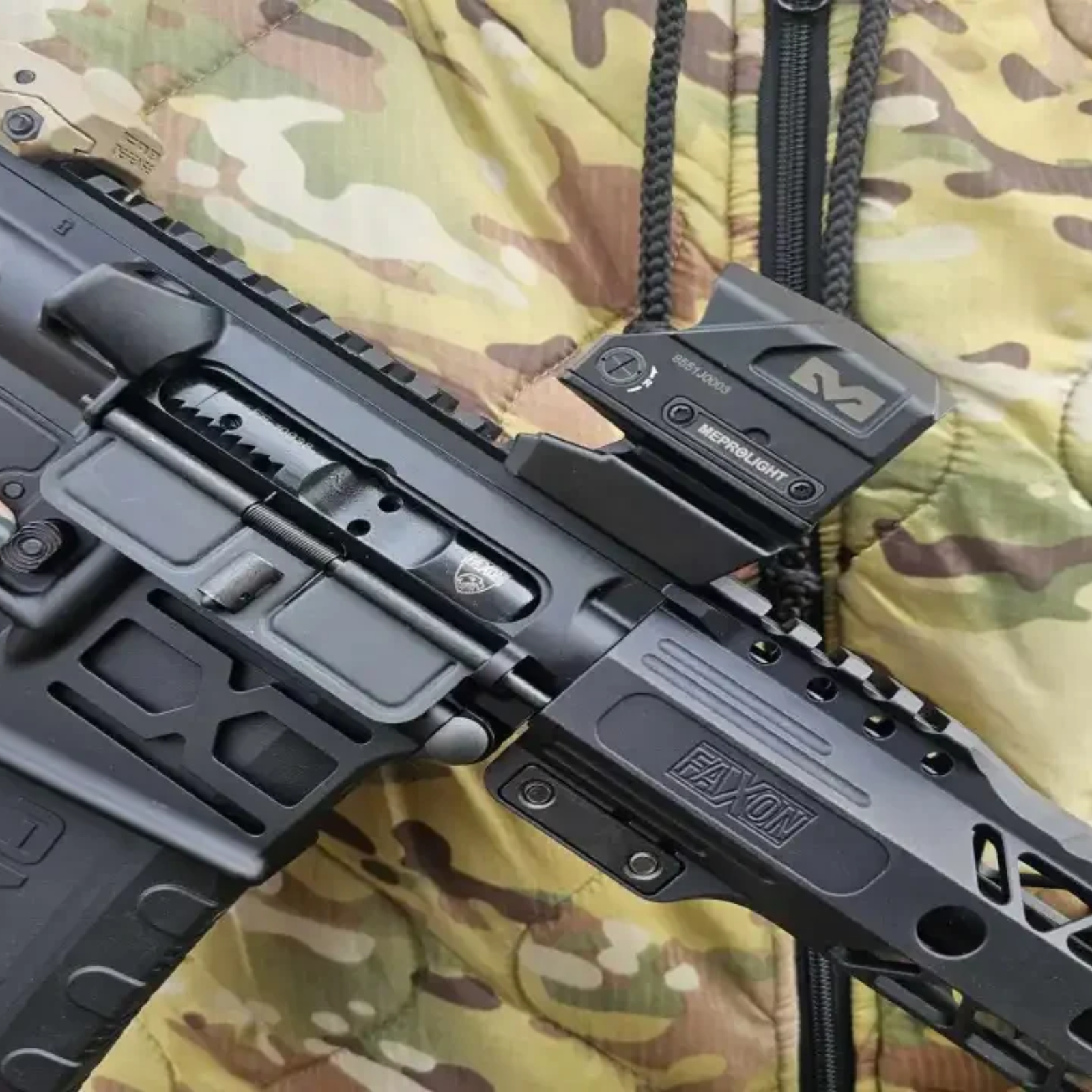

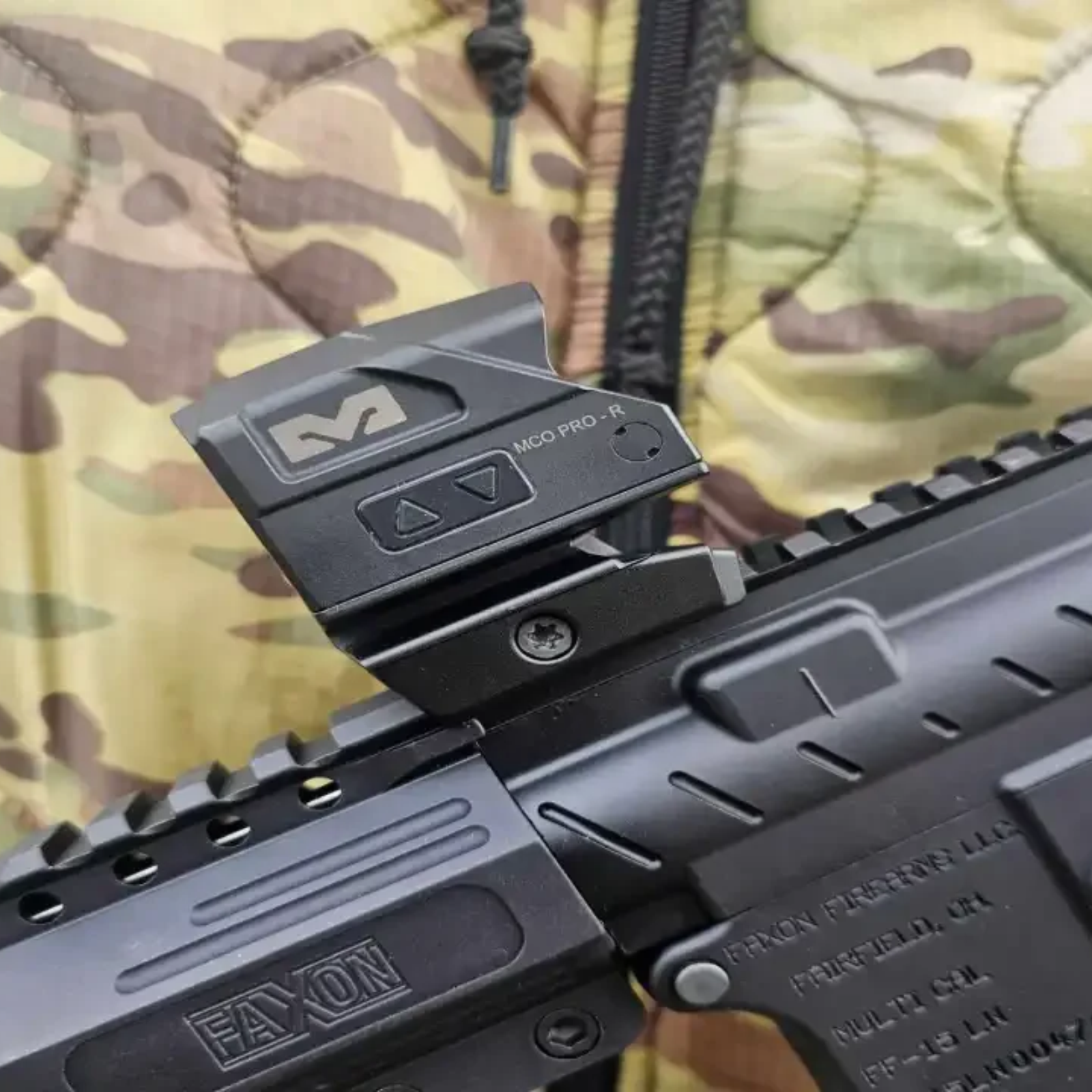

PRECISION MOUNTING & ZERO RETENTION
Half-MOA windage and elevation adjustments provide precise sight adjustment at 100 yards. The integrated recoil block is designed to support consistent alignment and zero retention, while the MIL-STD-1913 Picatinny mounting interface offers a standard carbine optic attachment platform.
An optional 1.93-inch riser is available separately for an elevated mounting position, including use where body armor affects the desired cheek position.
MCO PRO — enclosed-emitter protection, selectable SpeedRing reticles, intelligent brightness control, and rugged carbine-ready construction.
