Rear Spare Magazine Carrier For MX-1

MX-1 ACCESSORY

REAR SPARE MAGAZINE CARRIER FOR MX-1

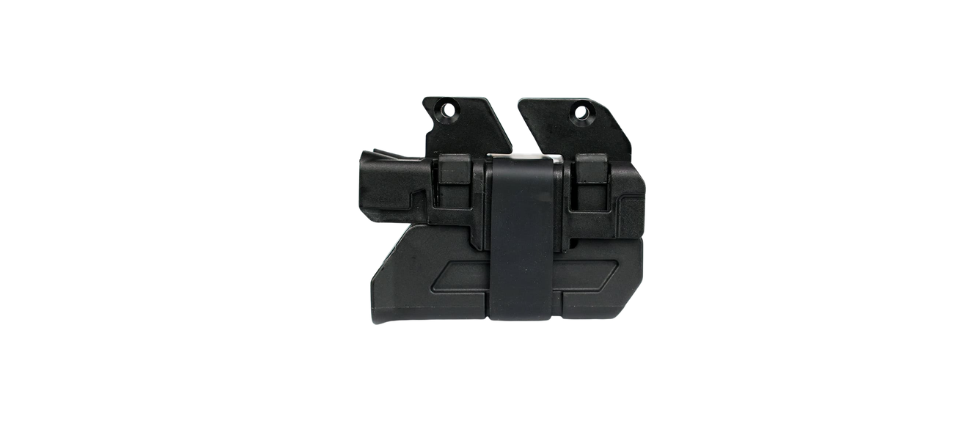

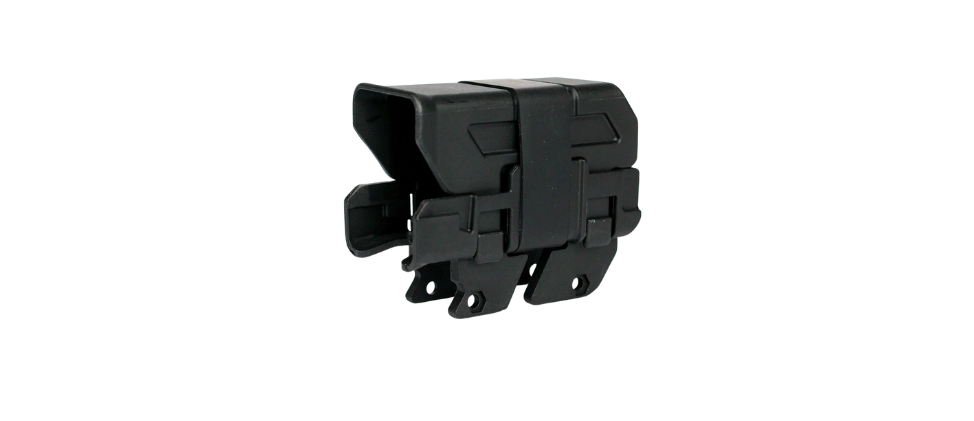

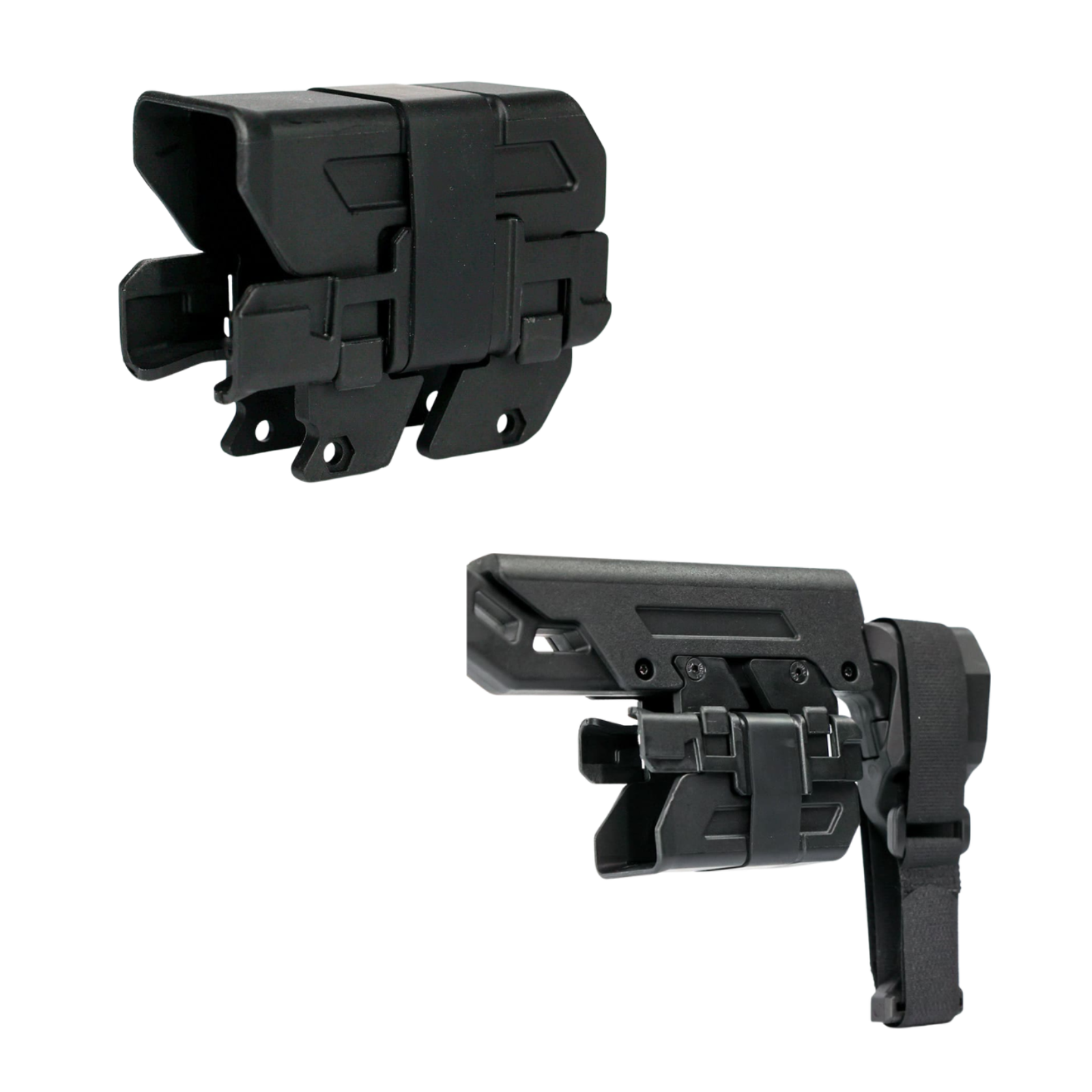

The Rear Spare Magazine Carrier (RSMC) is a precision-engineered friction-fit modular system that securely mounts a backup magazine to your Meta Tactical MX-1. Includes 8 interchangeable shims compatible with 150+ magazine types.

8 Included Shims
Compatible with 150+ magazine types.

Fast Installation
Two-screw mounting. No permanent modifications.

Rugged Construction
Mil-Spec fiber-reinforced polymer.


NOT INCLUDED:

Magazine and cheek rest.

2-HOLE OR 4-HOLE VERSION?

Check the mounting holes on your MX-1 Stock or Stabilizer and select the matching carrier version.

MX-1 four-hole stock or stabilizer mounting configuration

4-HOLE VERSION
For 4-hole Stock / Stabilizer configurations

MX-1 two-hole stock or stabilizer mounting configuration

2-HOLE VERSION
For 2-hole Stock / Stabilizer configurations

34.99 $

Free Shipping on U.S. Orders Over $150

Product Description

MX-1 ACCESSORY

SPARE MAGAZINE CARRIER FOR MX-1

Keep your backup magazine securely positioned and readily accessible with the MX-1 Spare Magazine Carrier — a precision-engineered, friction-fit modular system designed for the Meta Tactical MX-1.

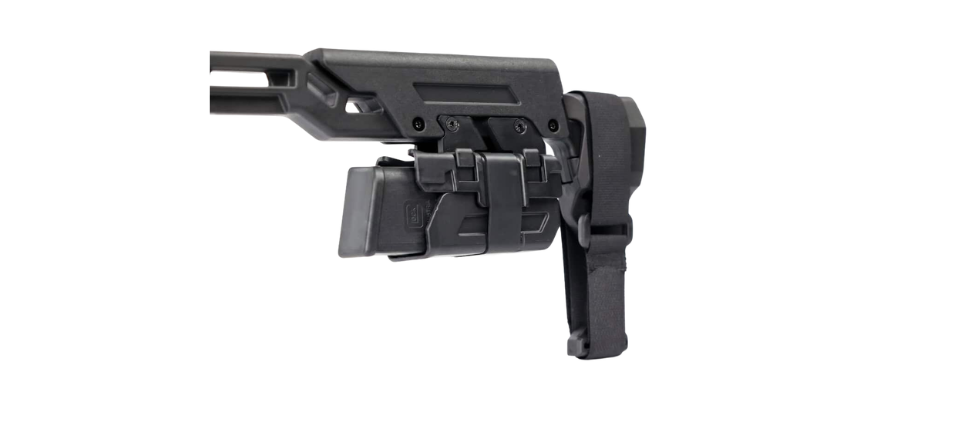

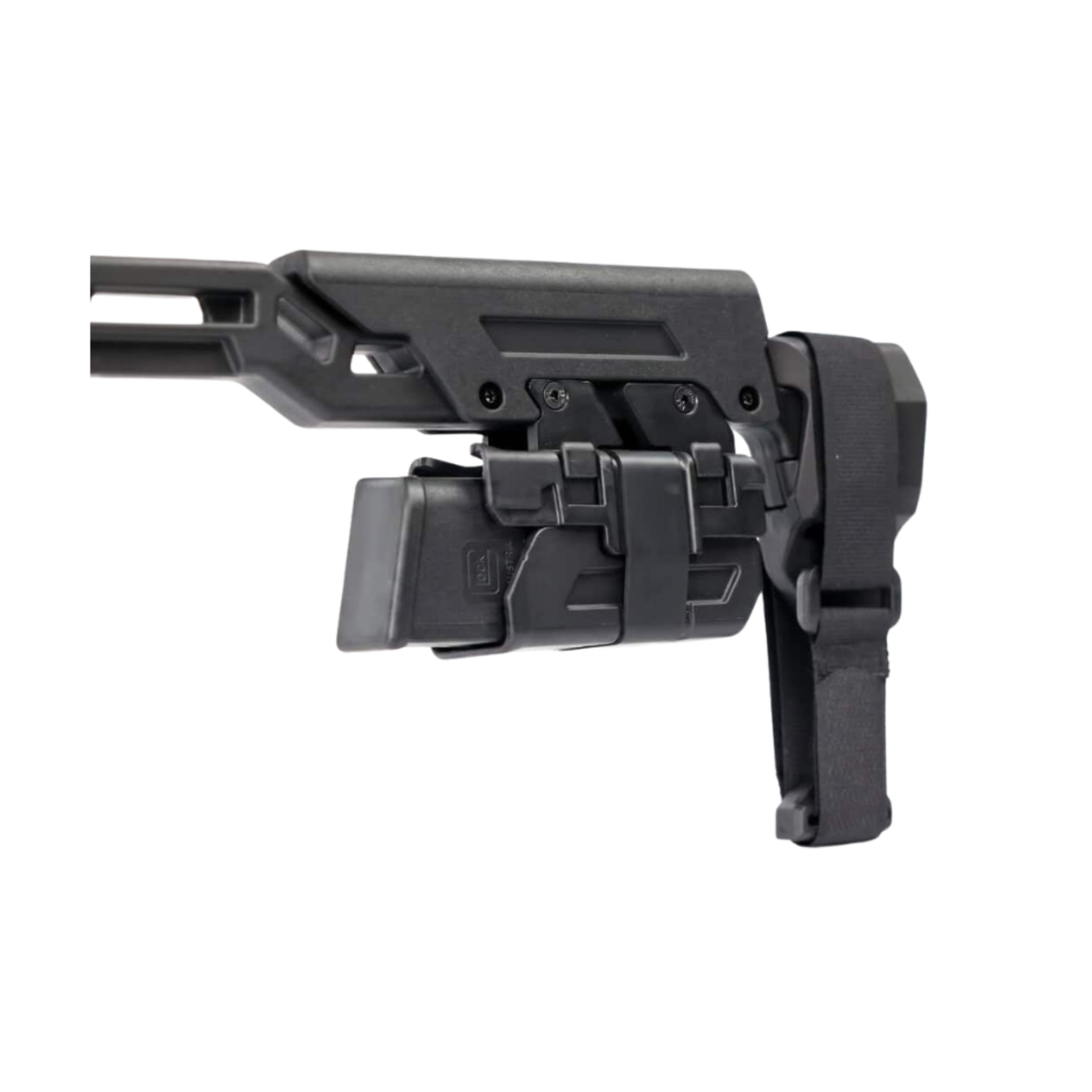

The Rear Spare Magazine Carrier (RSMC), also known as the Spare Magazine Holder for MX-1, mounts directly to a compatible MX-1 stock or stabilizer.

Its modular friction-fit system includes 8 precision-engineered shims to accommodate over 150 magazine types, including compatible single-stack and double-stack magazines from popular handgun manufacturers.

KEY FEATURES

FAST INSTALLATION
Secure the carrier using two M3 x 25mm flat-head screws and M3 nuts. No drilling or permanent modifications required.

RUGGED CONSTRUCTION
High-strength Mil-Spec fiber-reinforced polymer combines lightweight design with exceptional durability.

LOW-PROFILE DESIGN
Keeps your spare magazine firmly in place and readily accessible without adding unnecessary bulk to your MX-1 setup.

MODULAR COMPATIBILITY
Includes 8 interchangeable shims for secure friction-fit retention across 150+ compatible magazine types.

BROAD MAGAZINE COMPATIBILITY
Supports compatible magazines from Glock, Sig Sauer (P320 and P365), Springfield Armory, FN, Heckler & Koch (VP9 and VP9F), Taurus, Canik, Smith & Wesson (M&P series), CZ, and more.
Refer to the Compatibility and Shim Selection tabs for the complete model list and correct shim number.


NOT INCLUDED:

Magazine and cheek rest.

A practical MX-1 upgrade for competitive shooters, home defense users, and tactical enthusiasts who value convenient backup magazine storage and secure retention.

Compatibility

MX-1 ACCESSORY

MAGAZINE COMPATIBILITY

Rear Spare Magazine Carrier for MX-1 — compatible magazine makes and models supported by the 8-shim modular system.

COMPATIBLE MAGAZINE PLATFORMS

CANIK
Meta SF
Prime
TP9 SF Elite

CZ
P-10

FN
509

GLOCK
.40 Double Stack
.45 Double Stack
10mm Double Stack
9mm Double Stack
9mm Single Stack

HECKLER & KOCH
VP9
VP9F

LONE WOLF
Dusk 19

P80
PF940C
PF942
PFC9
PFS9

PSA
Dagger

RUGER
RXM

SHADOW SYSTEMS
DR920
MR920

SIG SAUER
P320
P365
P365 Macro

SMITH & WESSON
M&P 2.0 .40
M&P 2.0 Compact
M&P 2.0 Standard
SD40VE
SD9VE

SPRINGFIELD
.45
Hellcat Pro
XD9 9mm

TAURUS
G3


IMPORTANT:

This list identifies magazine types supported by the RSMC shim system. It does not indicate handgun compatibility with the MX-1 conversion chassis. Check the Shim Selection Guide to identify the correct shim for your magazine.

Specifications

MX-1 ACCESSORY

PRODUCT SPECIFICATIONS

Rear Spare Magazine Carrier for MX-1 — included components and package contents.

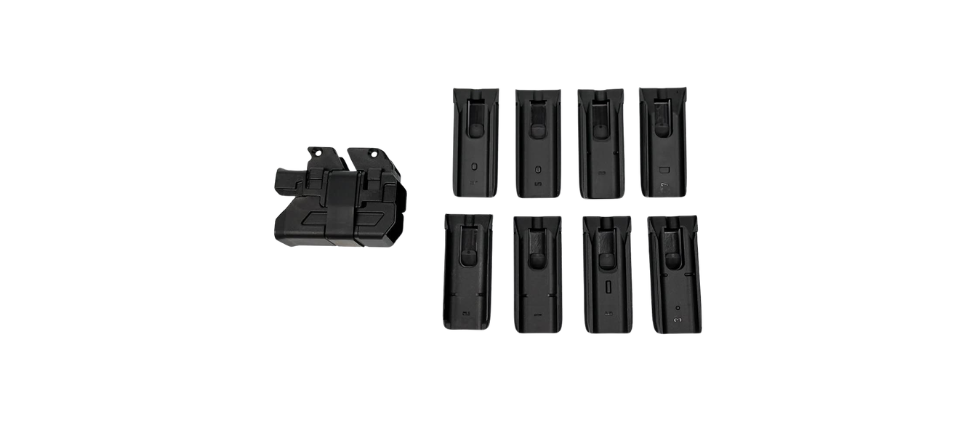

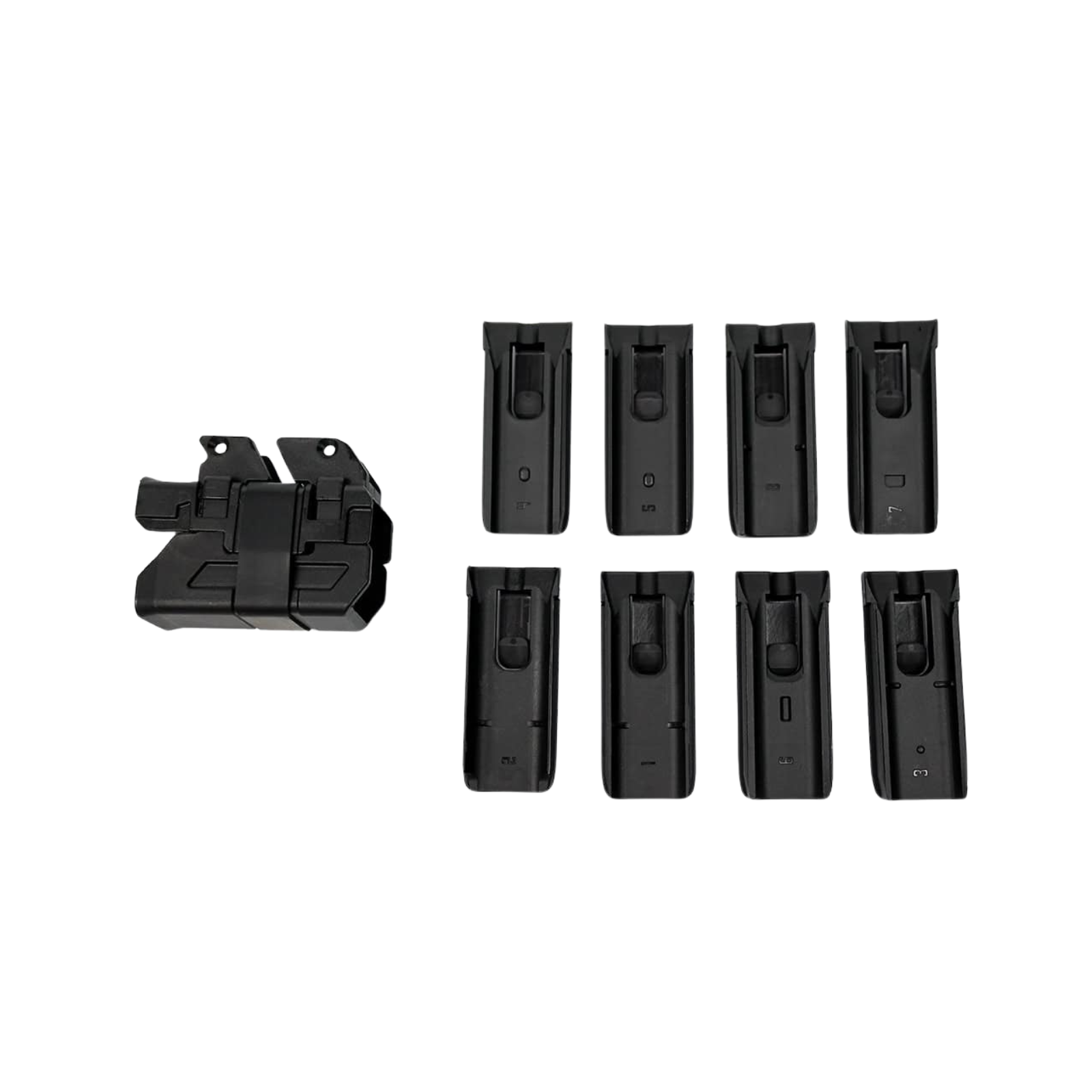

WHAT’S IN THE BOX

1
Rear Spare Magazine Carrier
RSMC carrier body

8
Modular Friction-Fit Shims
Multiple sizes for 150+ compatible magazine types

2
Mounting Screws
Mounting hardware kit

1
Installation & Shim Compatibility Guide
Installation and shim selection reference


NOT INCLUDED:

Magazine and cheek rest.

Installation Guide & Shim Selection — MX-1

MX-1 ACCESSORY

INSTALLATION GUIDE & SHIM SELECTION

Rear Spare Magazine Carrier (RSMC) for Meta Tactical MX-1 — installation overview and magazine shim reference.

INSTALLATION IN 3 STEPS

STEP 01
SELECT THE CORRECT SHIM
Use the compatibility guide below to identify the correct shim number for your magazine.

Position the shim with its locking tab facing upward and slide it into the carrier’s internal rail until it clicks securely into place.

STEP 02
MOUNT THE CARRIER
Select the RSMC version matching your MX-1 stock or stabilizer mounting configuration.

Align the carrier with the designated mounting points and secure it using the two installation screws and nuts. Tighten securely without over-tightening.

STEP 03
INSERT & REMOVE

Insert:
Push the compatible magazine into the carrier until it locks securely.

Remove:
Operate the release tab and pull the magazine straight out.


IMPORTANT – MX-1 MOUNTING:

Verify whether your MX-1 stock or stabilizer uses the 2-hole or 4-hole mounting configuration and select the corresponding carrier version. The EVO-specific cheek rest mounting arrangement should not be assumed to apply to the MX-1.

SHIM COMPATIBILITY GUIDE

Match your magazine make and model to one of the eight numbered shims included with the RSMC.

1
SHIM 1
Glock: .40 Double Stack, 9mm Double Stack
Lone Wolf: Dusk 19
P80: PF940C, PF942, PFC9, PFS9
PSA: Dagger
Ruger: RXM
Shadow Systems: DR920, MR920

2
SHIM 2
Glock: .45 Double Stack, 10mm Double Stack

3
SHIM 3
Sig Sauer: P320

4
SHIM 4
Springfield: XD9 9mm

5
SHIM 5
Springfield: .45

6
SHIM 6
FN: 509

7
SHIM 7
HK: VP9, VP9F

8
SHIM 8
Canik: Meta SF, Prime, TP9 SF Elite
CZ: P-10
Glock: 9mm Single Stack
Sig Sauer: P365, P365 Macro
Smith & Wesson: M&P 2.0 .40, M&P 2.0 Compact, M&P 2.0 Standard, SD40VE, SD9VE
Springfield: Hellcat Pro
Taurus: G3


PLEASE NOTE:

The shim chart identifies compatible magazine types, not handgun compatibility with the MX-1 chassis. Check that the selected shim provides secure magazine retention. Verify the correct MX-1 mounting configuration before installation.
